Buyers should check an excavator swing motor by confirming the machine model, serial number, old motor photos, mounting flange, bolt pattern, port layout, shaft spline, rotation direction, condition grade, test evidence and export packing before approving a China quote.
This PRIMA guide supports the P0 US excavator swing motor cluster and links it with the hydraulic pump buyer guide, final drive guide, hydraulic cylinder guide and excavator parts supplier hub.
Quick answer: what evidence matters for an excavator swing motor quote?
An excavator swing motor quote should begin with the old motor, not only the excavator model name. Buyers should send model, serial number, old motor photos, port layout, shaft spline, mounting flange, bolt pattern, rotation direction and visible nameplate or casting area if available. PRIMA can compare new, aftermarket, used or rebuilt options, but the quote should stay conditional until the old motor evidence is clear. Packing should protect the shaft, ports and flange, and the final photo file should connect the inspected motor to the shipped motor.
Buyer Summary
- This page is for buyers sourcing excavator swing motors, swing drive motors and hydraulic motor replacements from China.
- Port layout, shaft spline, bolt pattern and rotation direction are higher-value evidence than a model name alone.
- Used or rebuilt swing motors need actual-condition photos and repair/test boundaries before payment.
- No brand authorization, live stock or warranty claim is made without current evidence for the exact option.

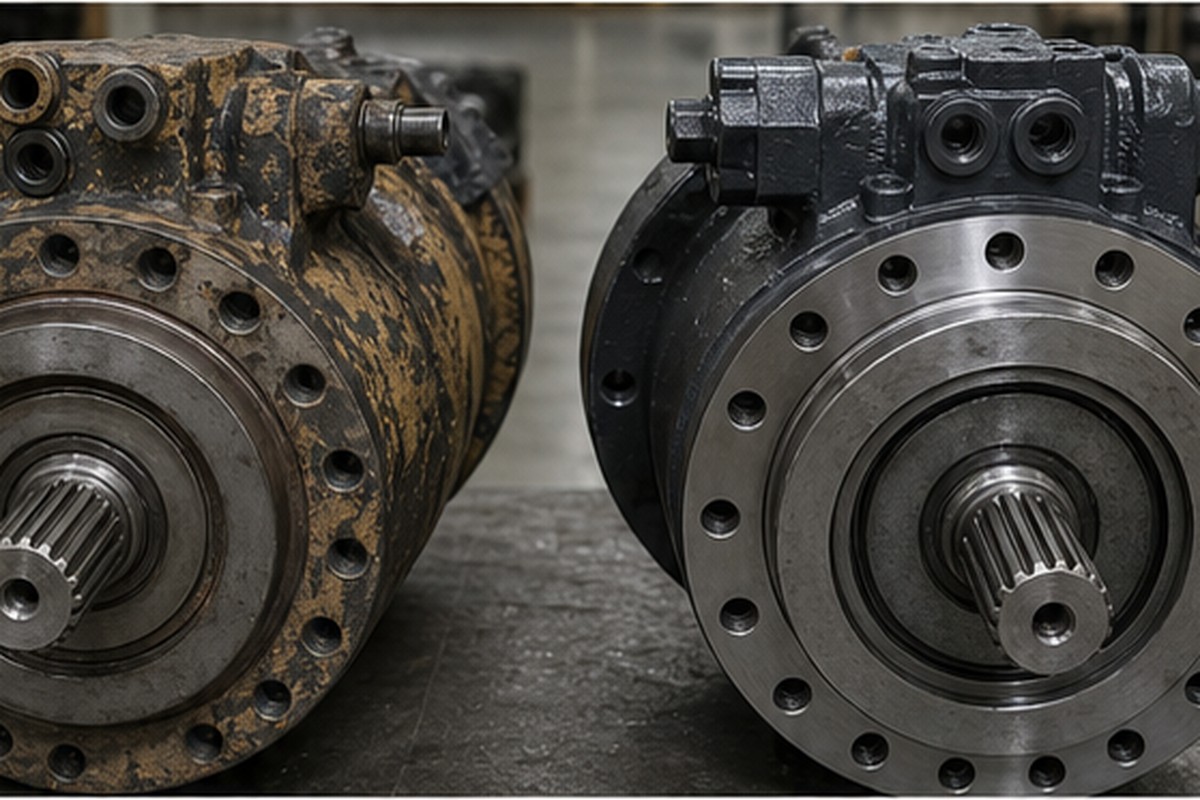

Which swing motor fitment details should buyers request first?
Start with the old motor because model names can hide multiple hydraulic configurations.

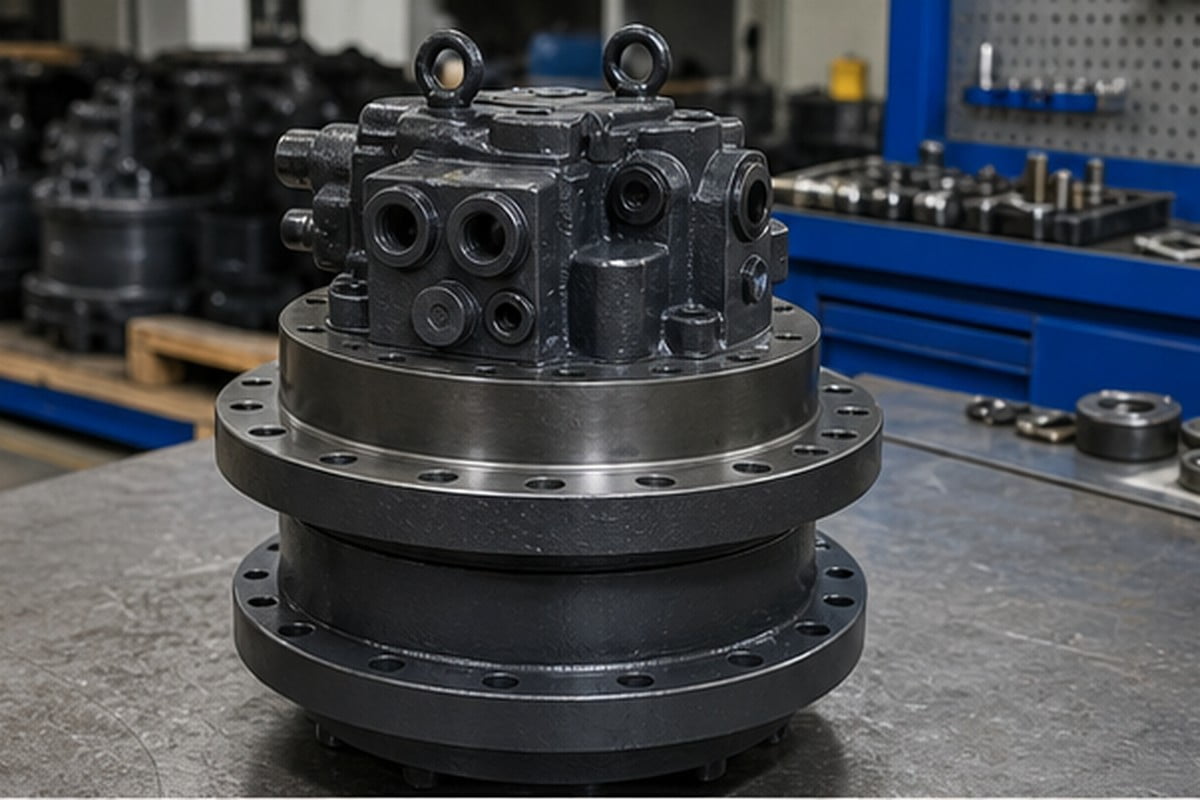

A swing motor is tied to the upper-structure rotation system, so a wrong unit can create installation failure, weak swing power or oil-line mismatch. PRIMA should ask for the excavator model, serial number, old motor front and rear photos, port side view, shaft end, mounting flange and bolt-hole pattern.

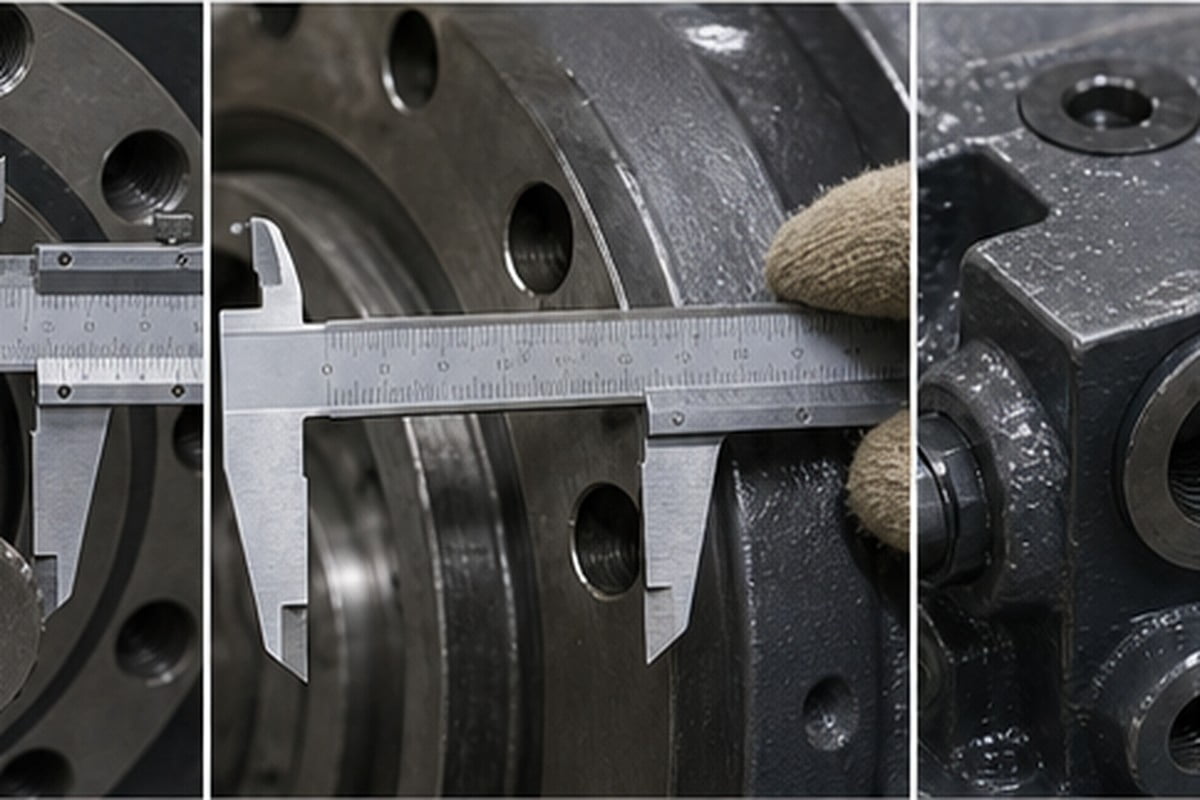

If a nameplate or casting number is missing, the buyer can still reduce risk by sending clear measurements. The quote should show whether PRIMA matched the motor by part number, visual layout, flange, shaft, ports or a supplier cross-reference. A vague model-only quote should be treated as incomplete.
| Fitment point | Evidence | Risk controlled |
|---|---|---|
| Port layout | Side and top photos | Hose mismatch |
| Shaft spline | End photo and measurement | Coupling cannot fit |
| Mounting flange | Bolt pattern and face photo | Motor cannot mount |

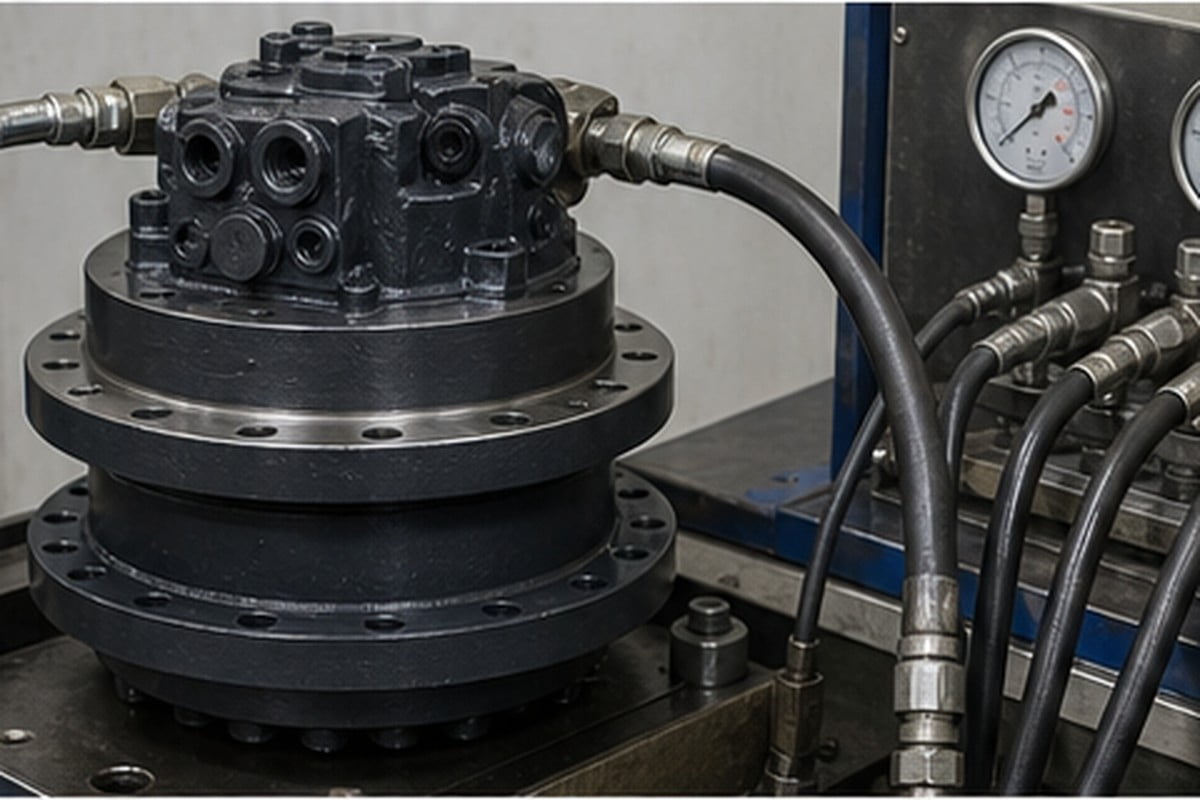

How should condition grade be compared for swing motors?
New, aftermarket, used and rebuilt options should be compared with different evidence standards.
A new or aftermarket swing motor should show product photos, machining surfaces, protected ports and supplier QC evidence. A used motor should show the actual unit, oil stains, shaft condition, mounting surface, ports and any visible damage. A rebuilt motor should describe what was repaired and whether testing is available.
The cheapest option can be reasonable for an older machine, but only when the buyer understands the tradeoff. PRIMA should keep warranty boundaries, availability and delivery time separate from fitment evidence so the buyer is not pushed toward the wrong grade.
| Option | Best use | Minimum proof |
|---|---|---|
| Aftermarket/new | Longer repair horizon | Fitment and QC photos |
| Used | Budget or urgent repair | Actual unit condition |
| Rebuilt | Repairable core design | Repair scope and test note |
How do swing motor problems differ from final drive or pump problems?
Weak swing action does not automatically mean the swing motor alone is bad.
Slow or weak swing can be caused by the swing motor, swing gearbox, relief valve, pump flow, control valve, brake, bearing or hydraulic leakage. Buyers should send symptoms, operation video, abnormal noise, oil leak photos and any mechanic test data before replacing the motor.
This separation matters because a swing motor quote may not solve a gearbox or control-valve problem. PRIMA can still supply the motor, but the page should teach buyers to diagnose the system before treating a part order as a complete repair.
| Symptom | Evidence | Possible area |
|---|---|---|
| Weak swing | Operation video | Motor, pump or valve |
| Oil leak | Close-up photo | Seal, hose or port |
| Noise | Video/audio note | Motor or gearbox |

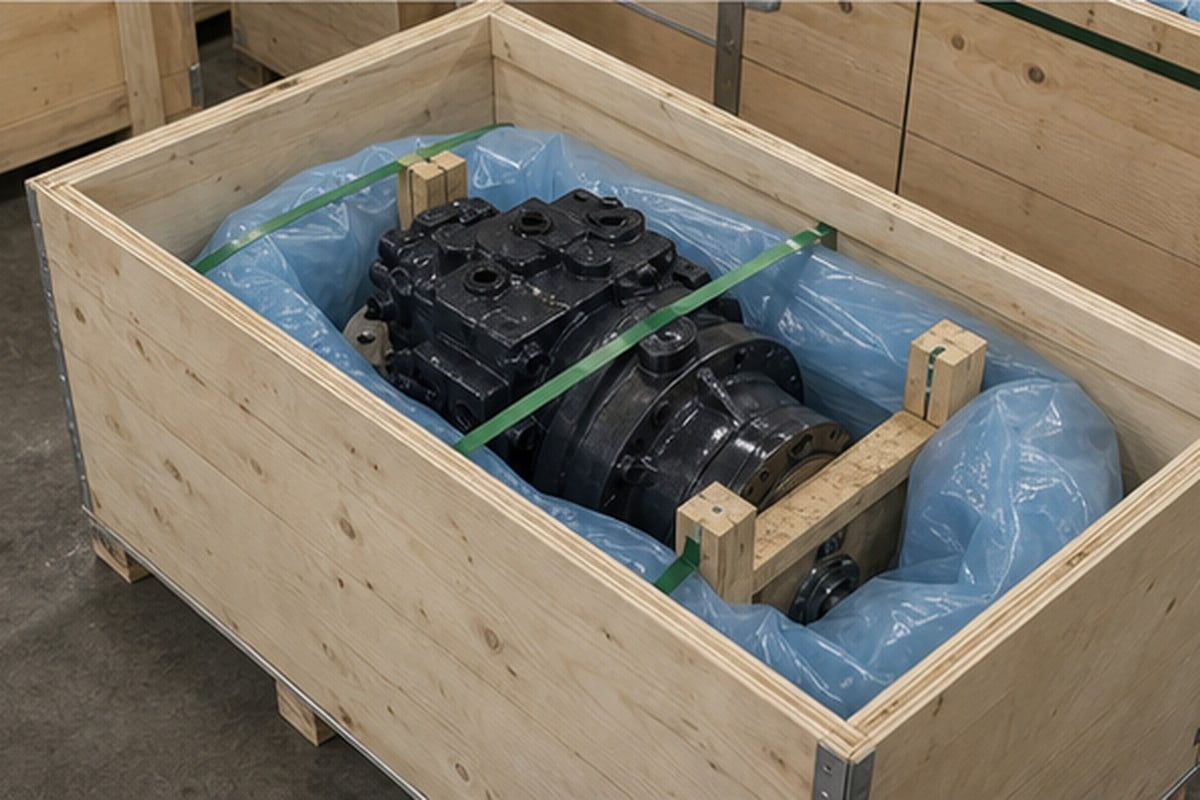

What packing proof should be required before shipment?
Swing motor packing should protect precision surfaces and prevent mixed-order confusion.
The shaft, ports, flange and sealing surfaces should be protected before export. The buyer should request final photos showing the approved motor, port caps, shaft protection, padding, crate or carton support and shipment document match. Loose heavy motors can be damaged if they move inside the crate.
The receiving team should compare the arrival unit with PRIMA’s final photo file. If the motor was selected from several condition grades, the packing photo should prove that the shipped unit is the same grade and physical unit approved before payment.
| Packing point | Proof | Buyer value |
|---|---|---|
| Ports | Caps or wrapping | Prevents dirt and damage |
| Shaft | Padding and guard | Protects spline |
| Identity | Final photo file | Matches approved option |
Evidence Table
| Buyer question | Evidence PRIMA should provide | Why it matters |
|---|---|---|
| Will the swing motor fit? | Old motor photos, ports, shaft, flange and bolt pattern | Reduces wrong-part risk |
| Is the condition grade clear? | Actual unit photos and new/used/rebuilt boundary | Makes price comparison fair |
| Is the failure diagnosed? | Video, leak photos and mechanic notes | Avoids replacing the wrong component |
| Can it ship safely? | Port caps, shaft protection and crate photos | Protects precision surfaces |
Key Facts For PRIMA Buyers
- PRIMA keyword database lists `excavator swing motor` as a P0 US hydraulic-part target.
- Swing motor fitment should compare ports, shaft spline, flange and bolt pattern, not only model name.
- Weak swing action can also involve gearbox, pump flow, relief valve or control valve issues.
- Export packing must protect the shaft, ports and mounting surface.
Buyer FAQ
Is excavator model enough to buy a swing motor?
No. Buyers should also send old motor photos, ports, shaft spline, flange and bolt pattern.
Can PRIMA compare used and rebuilt swing motors?
Yes, but each option needs actual-condition evidence and a clear repair or warranty boundary.
Is weak swing always caused by the swing motor?
No. Pump flow, valve, brake or gearbox issues can create similar symptoms.
What should the final packing photo show?
It should show the selected motor, port protection, shaft protection, padding and crate or carton support.
Conclusion
A swing motor should be ordered as a fitment file, not a model-name guess. PRIMA's safer workflow is to compare old motor evidence, condition grade, diagnosis notes and export packing before payment and shipment.
